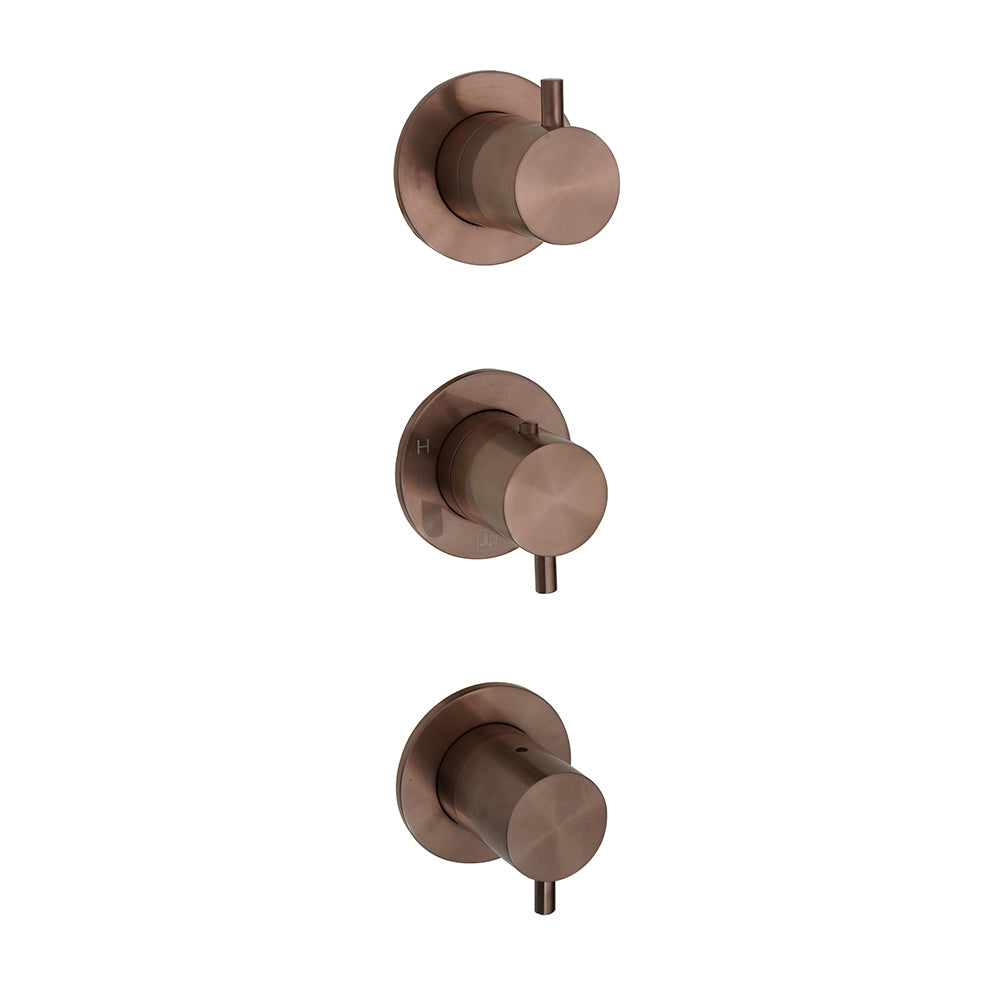

Transform your shower area into a beautifully coordinated retreat with this sophisticated concealed shower valve set. Crafted from durable brass and enriched with an elegant brushed bronze finish, it introduces a warm, luxurious character while delivering reliable everyday performance. Three rounded controls are fitted through separate wall openings, forming a balanced, minimalist arrangement that can be installed vertically or horizontally to complement your preferred bathroom layout.
The working components remain discreetly concealed behind the wall, leaving only the graceful lever handles and 72mm circular backplates visible.
Rotating the central thermostatic dial to the left or right increases or decreases the water temperature supplied to the three shower outlets, allowing you to achieve a comfortable balance between hot and cold water. The upper dial controls the flow between the primary and secondary outlets, such as an overhead shower and shower handset. The lower dial independently increases or decreases the water flow to the third outlet, such as a bath spout. All compatible shower outlets and accessories are available separately.
Designed as a versatile 3 outlet shower valve, it operates from a minimum water pressure of 0.5 bar and features secure G 3/4-inch threaded plumbing connections. WRAS approval provides added reassurance, while ceramic disc technology ensures smooth control and reliable, drip-resistant performance. The valves are spaced 150mm apart, with each control measuring 42mm in width and 153mm in length, creating refined proportions that sit beautifully within a modern bathroom. A 15-year manufacturer’s guarantee is included, together with five-year cover for the cartridges.
Pair this striking valve set with a matching brushed bronze overhead shower, wall-mounted shower arm, handset, hose, outlet elbow and body jets to create a harmonious, fully coordinated setting. Choose this exquisite concealed fitting to bring intuitive control, lasting quality and distinguished bronze elegance to your bathroom.
Features and Benefits :
- Solid brass construction
- Brushed bronze finish
- Modern rounded
- Concealed installation
- Three separate controls for straightforward shower operation
- Flexible vertical or horizontal mounting to suit your preferred bathroom layout
- Central thermostatic dial for precise hot and cold water temperature adjustment
- Upper dial for controlling the water flow between two primary shower outlets
- Lower dial for independently increasing or decreasing the flow to a third outlet
- Three-outlet configuration for creating a versatile shower and bathing setup
- Ceramic disc technology for smooth, easy and drip-resistant operation
- WRAS approved for added quality and safety reassurance
- Suitable for medium-pressure water systems
- Minimum operating pressure: 0.5 bar
- G 3/4" threaded plumbing connections
- Gap between controls: 150mm
- Circular backplate width: 72mm
- Valve width: 42mm
- Valve length: 153mm
- 15-year manufacturer’s guarantee
- Five-year guarantee on cartridges

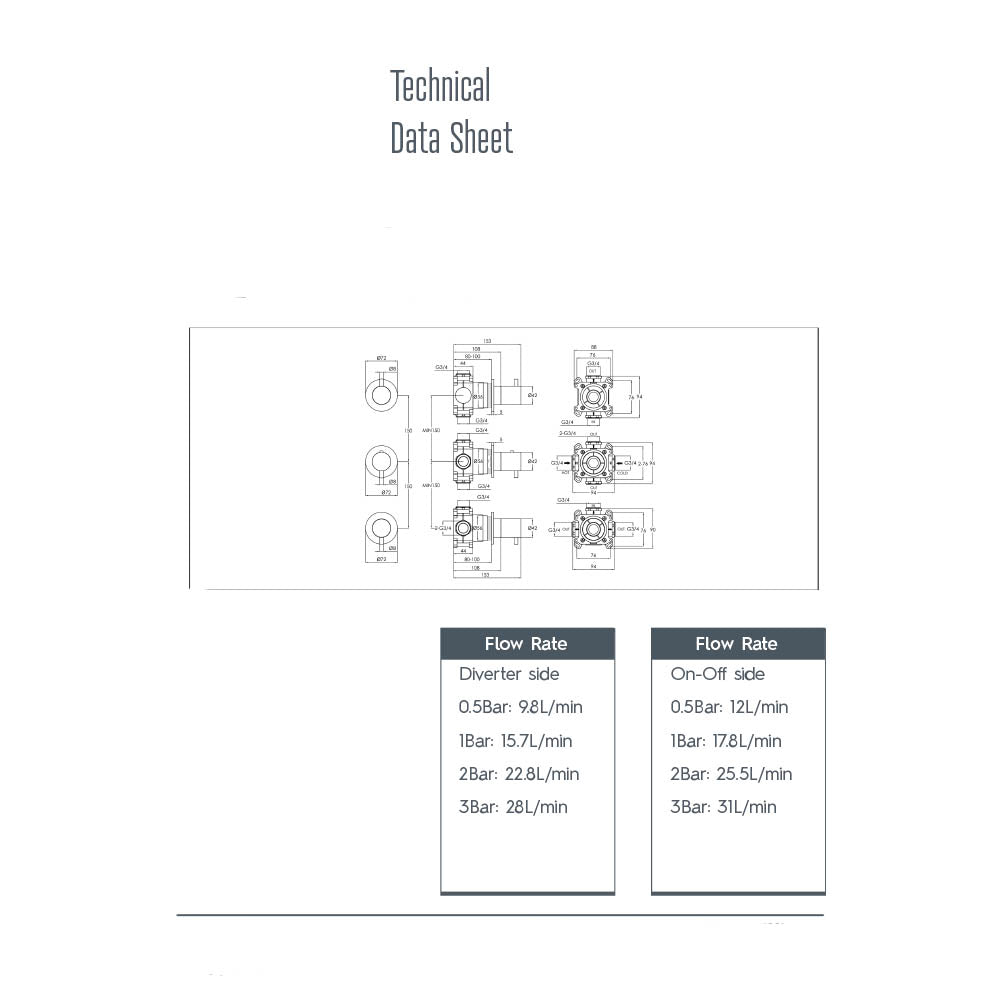

Flow Rate Diverter Side:
- 0.5Bar: 9.8L/min
- 1Bar: 15.7L/min
- 2Bar: 22.8L/min
- 3Bar: 28L/min
Flow Rate On-Off Side:
- 0.5Bar: 12L/min
- 1Bar: 17.8L/min
- 2Bar: 25.5L/min
- 3Bar: 31L/min
- 2Bar: 28.5L/min
- 3Bar: 36L/min
