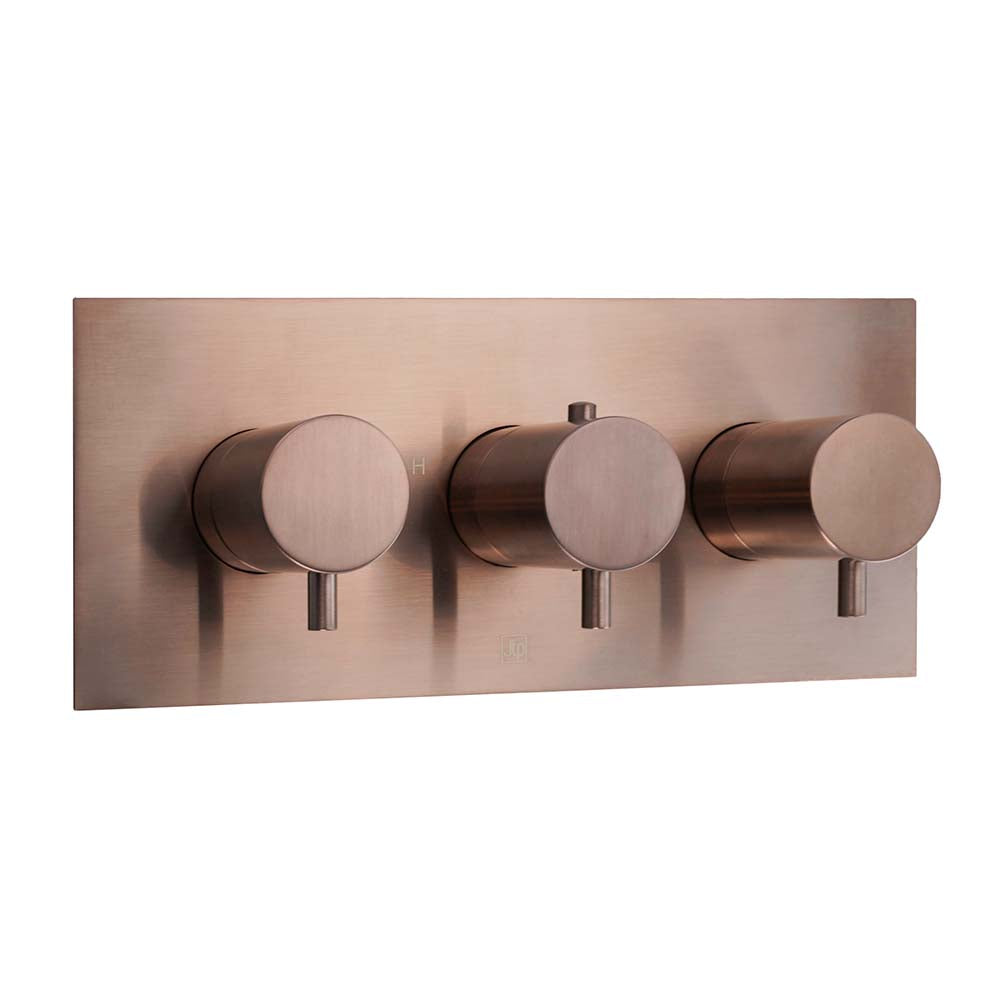

A shower setup should offer both reliability and design appeal, and the 3 way thermostatic shower mixer valve delivers exactly that. Crafted from solid brass and enhanced with a durable PVD coating, its brushed bronze finish adds strength along with a touch of sophistication that suits both classic and modern interiors.

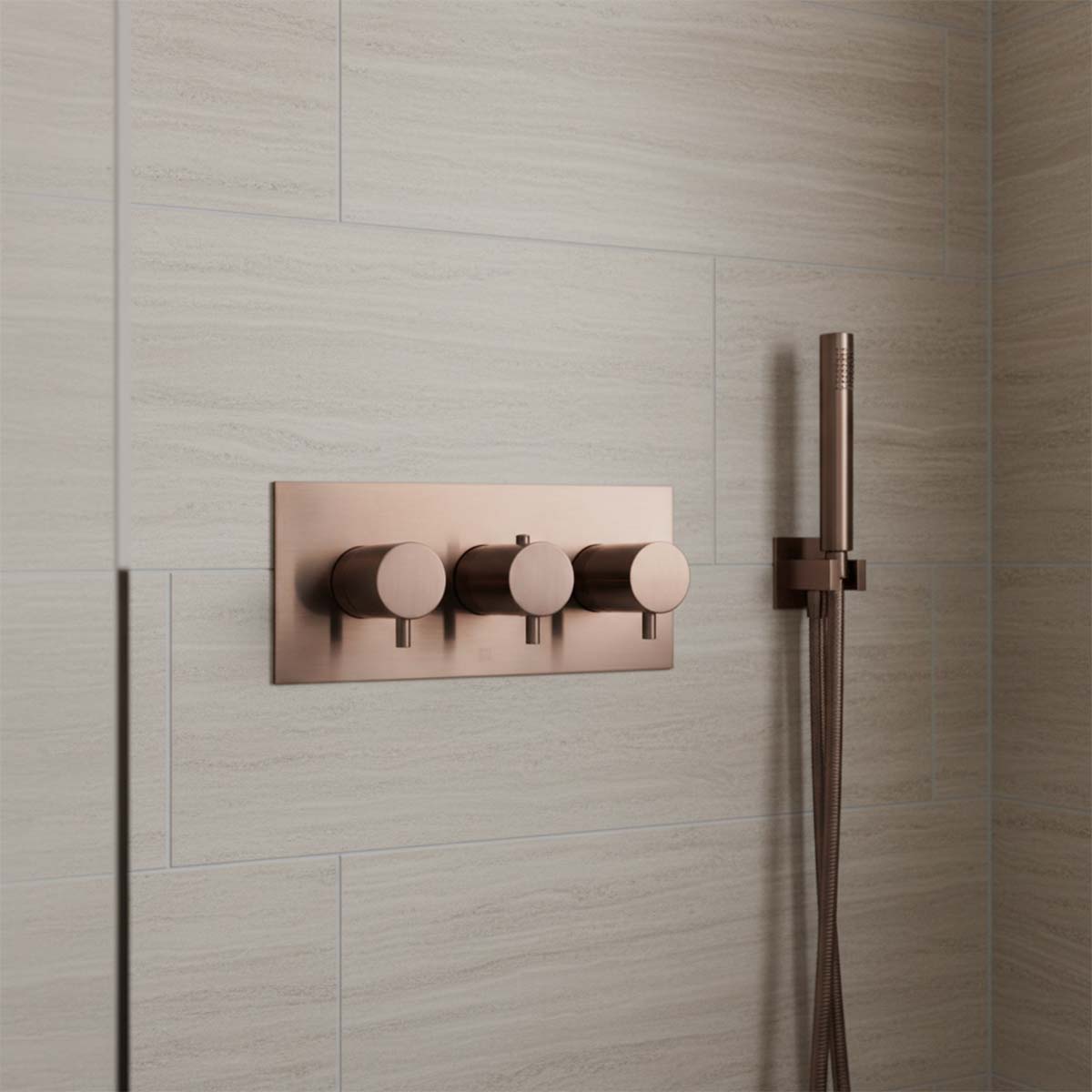

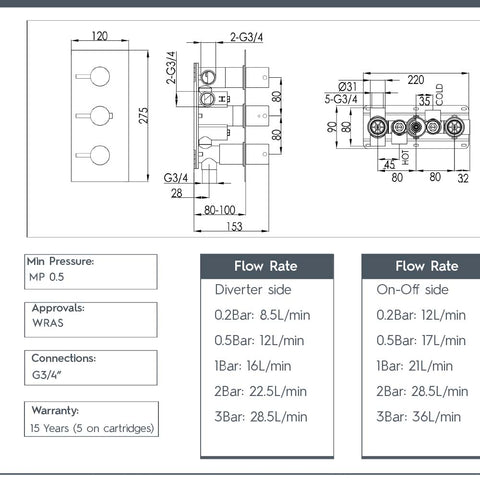

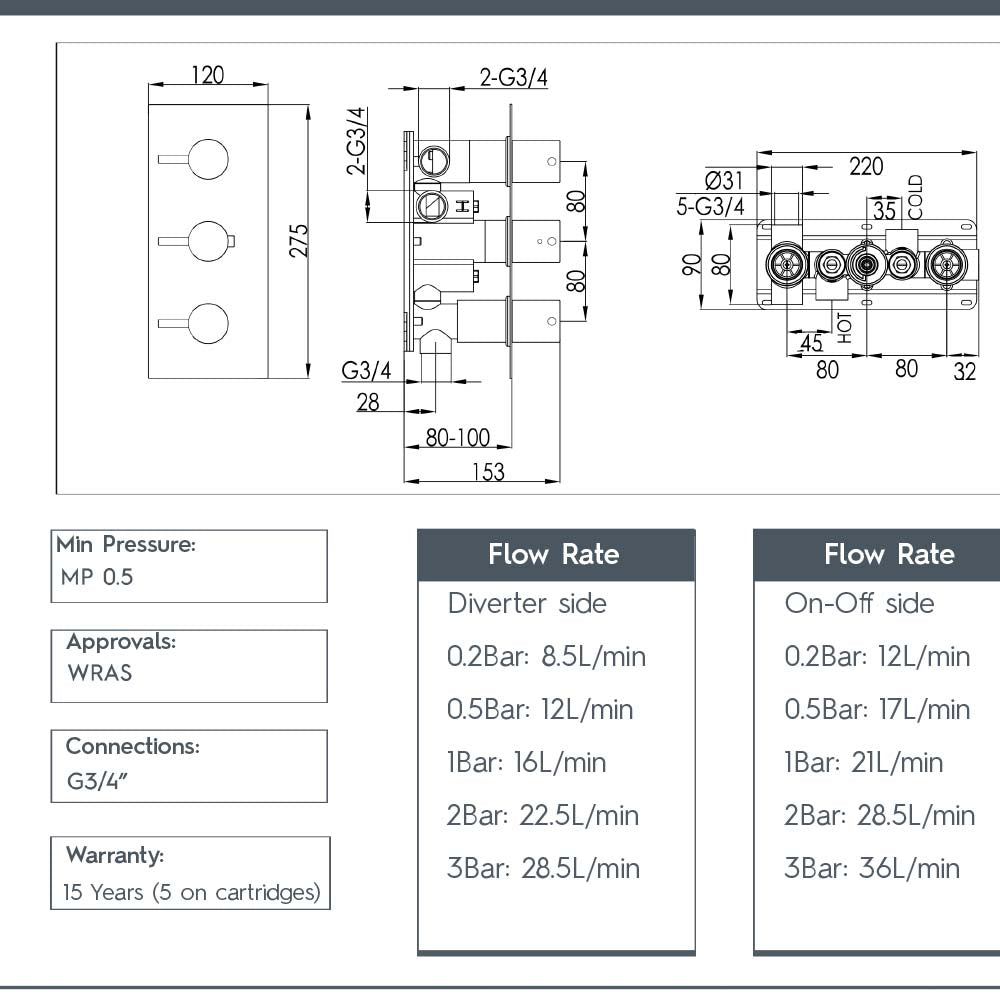

The concealed shower valve is mounted in a landscape orientation on a rectangular backplate measuring 120mm in height, 275mm in width, and projecting 153mm from the wall, creating a sleek, streamlined look. Each valve spaced 80mm apart, features a three lever handle on/off diverter for effortless switching between the overhead shower and the handset (each sold separately), while the other control precisely regulates water temperature hot and cold, as well as waterflow.
Thermostatic regulation ensures hot and cold water flow remain perfectly balanced for comfort and safety, while the ceramic disc cartridge provides smooth performance, even with a minimum pressure of just 0.5 bar. Supplied with a manufacturing guarantee of 15-years.
The best part is that this design is also available in 2 outlet and single outlet versions within our collection, giving you even more choice.
Features and Benefits:
- WRAS certified
- Brushed bronze PVD finish
- Strong solid brass build
- Concealed wall-mounted design
- Rectangular backplate
- Height: 120mm
- Width: 275mm
- Three round lever handles
- Controls 3 shower outlets
- Works with 0.5MP minimum pressure
- Thermostatic for safe, stable temperature
- 15-year manufacturer guarantee
Flow Rate Diverter Side:
- 0.2Bar: 8.5L/min
- 0.5Bar: 12L/min
- 1Bar: 16L/min
- 2Bar: 22.5L/min
- 3Bar: 28.5L/min
Flow Rate On-Off Side:
- 0.2Bar: 12L/min
- 0.5Bar: 17L/min
- 1Bar: 21L/min
- 2Bar: 28.5L/min
- 3Bar: 36L/min
