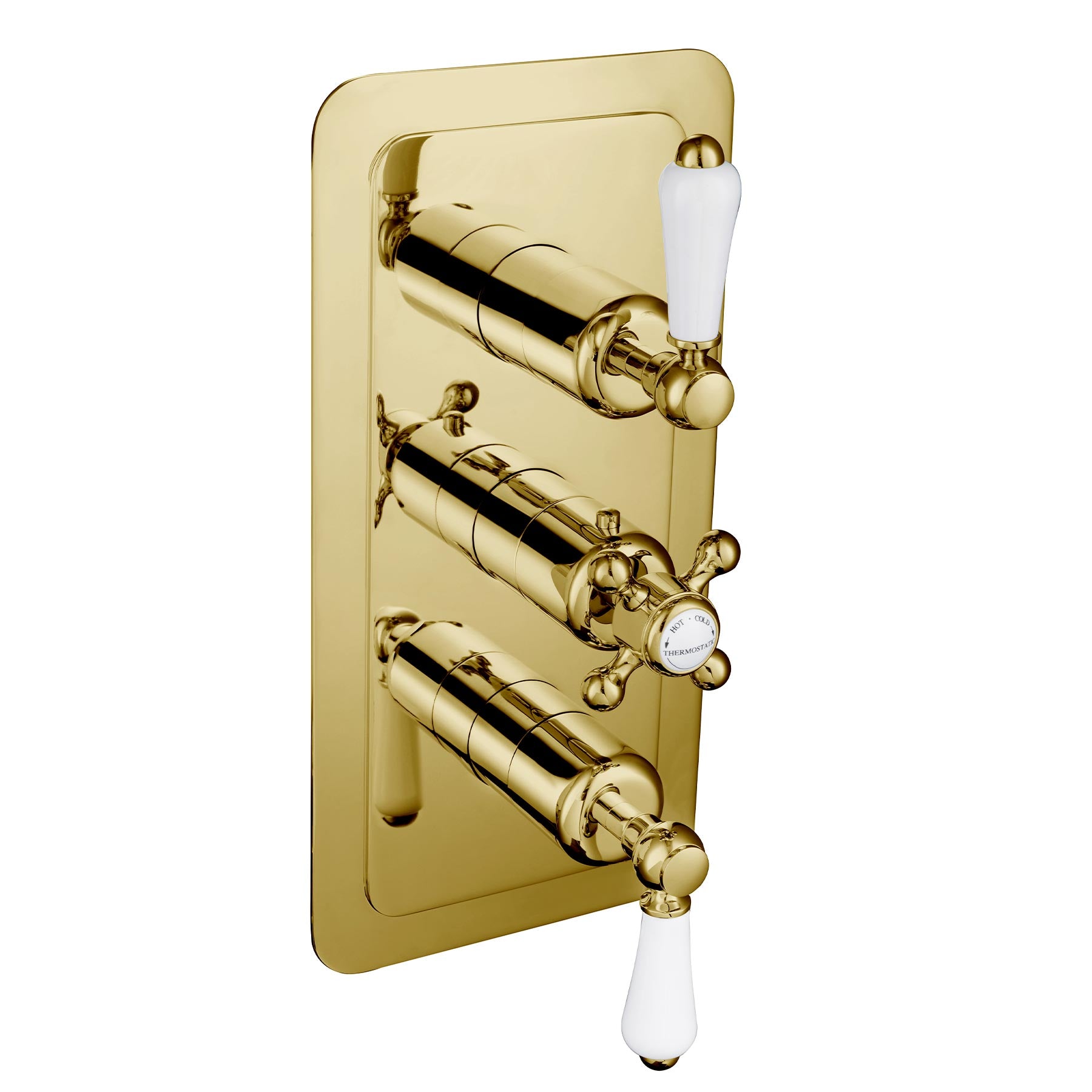

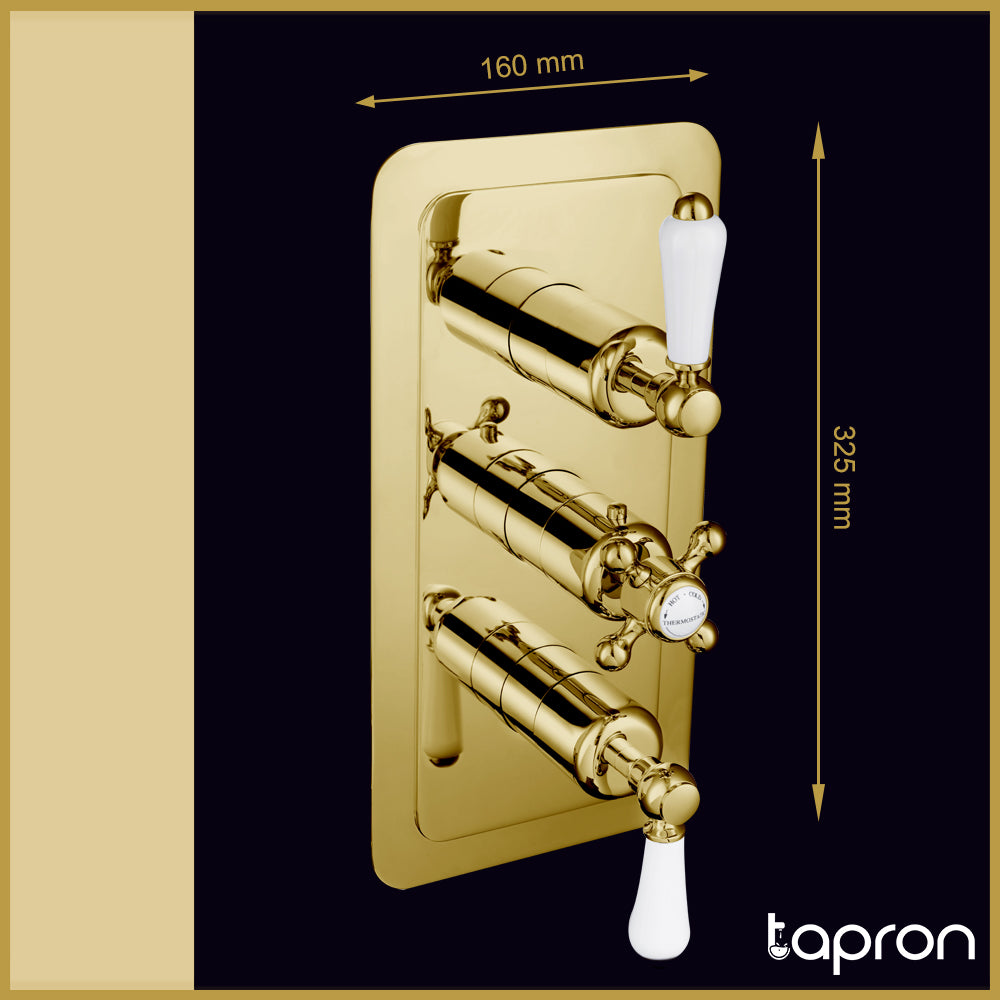

A true reflection of timeless design, this gold 3 outlet shower valve is crafted from solid brass with a refined antique brass finish. Set in a portrait orientation on a rectangular backplate, it measures 325mm in height and 160mm in width, combining strength with understated elegance.
Engineered as a concealed shower valve, it maintains a neat, uncluttered look on the wall while delivering smooth functionality. Two lever handles sit at the sides: one works as a diverter, switching easily between an overhead shower, handheld shower, and a bath spout (available separately), while the other controls the flow of water.
The centre features the traditional shower mixer valve, designed with a crosshead handle for thermostatic temperature control. Hot and cold settings are highlighted by white ceramic accents, ensuring clarity and adding a touch of period charm. Requiring only 0.5 bar of minimum water pressure, it is well suited to a range of household systems. Supported by a 15-year manufacturing guarantee, it provides both lasting performance and everyday comfort.
Matching accessories, including a shower waste and niche, are available to complete the look and achieve a coordinated bathroom finish. This design is also offered in two-outlet and single-outlet versions, providing flexibility to choose the most suitable option for your space.
Features and Benefits:
- Type: Concealed Shower Valves
- Shape Plate: Rectangular
- Material: Brass
- Finish: Antique Brass
- Style: Traditional
- Mounting Type: Wall-Mounted
- Number of Outlets: 3 Outlets
- Handle Types: Lever, Crosshead, Triple Control
- Cartridge Type: Ceramic Disc

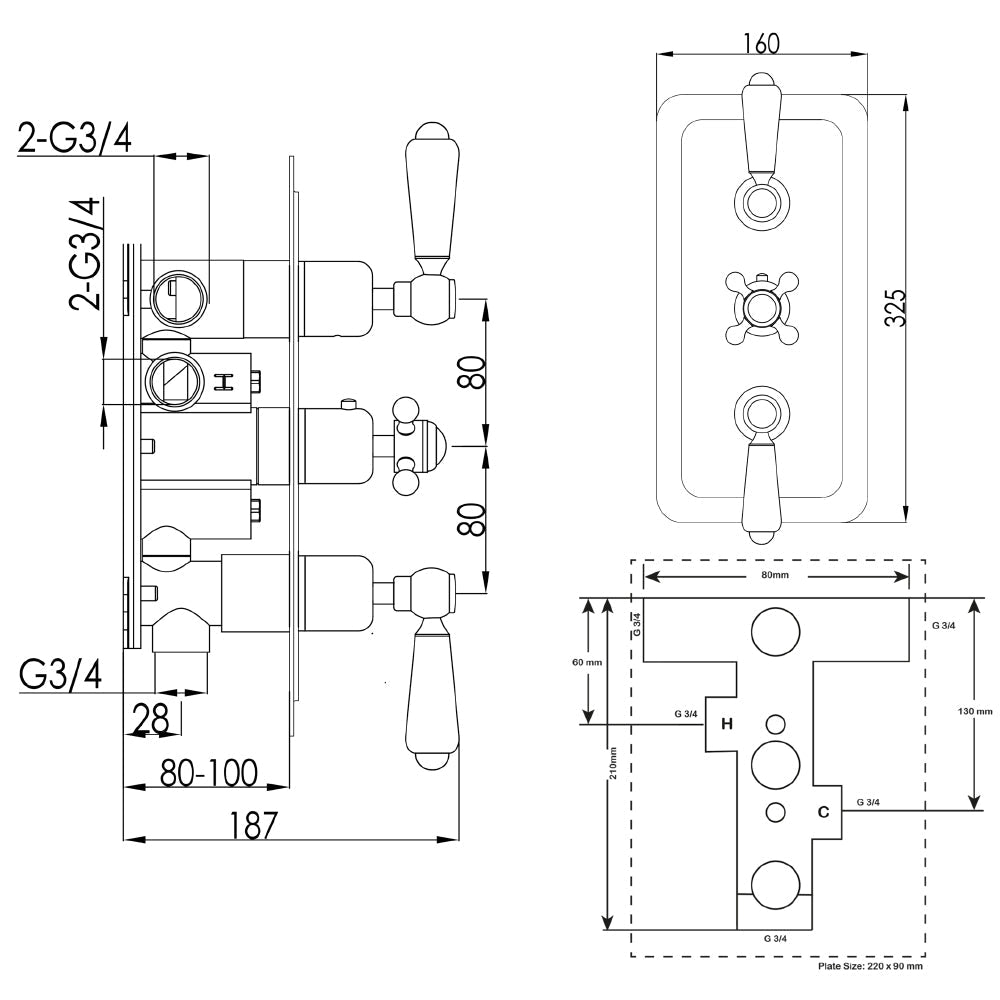

- Height: 325mm
- Width: 160mm
- Projection: 182mm
- Orientation: Portrait
- Minimum Water Pressure (bar): 0.5
- Temperature Control: Thermostatic
- Manufacturer Guarantee: 15-years
Flow Rate Diverter Side:
-
0.2Bar: 8.5L/min
-
0.5Bar: 12L/min
-
1Bar: 16L/min
-
2Bar: 22.5L/min
-
3Bar: 28.5L/min
Flow Rate On-Off Side:
-
0.2Bar: 12L/min
-
0.5Bar: 17L/min
-
1Bar: 21L/min
-
2Bar: 28.5L/min
-
3Bar: 36L/min
Upgrade your shower with our Vertical Shower Valve, and experience the perfect blend of style and functionality.
