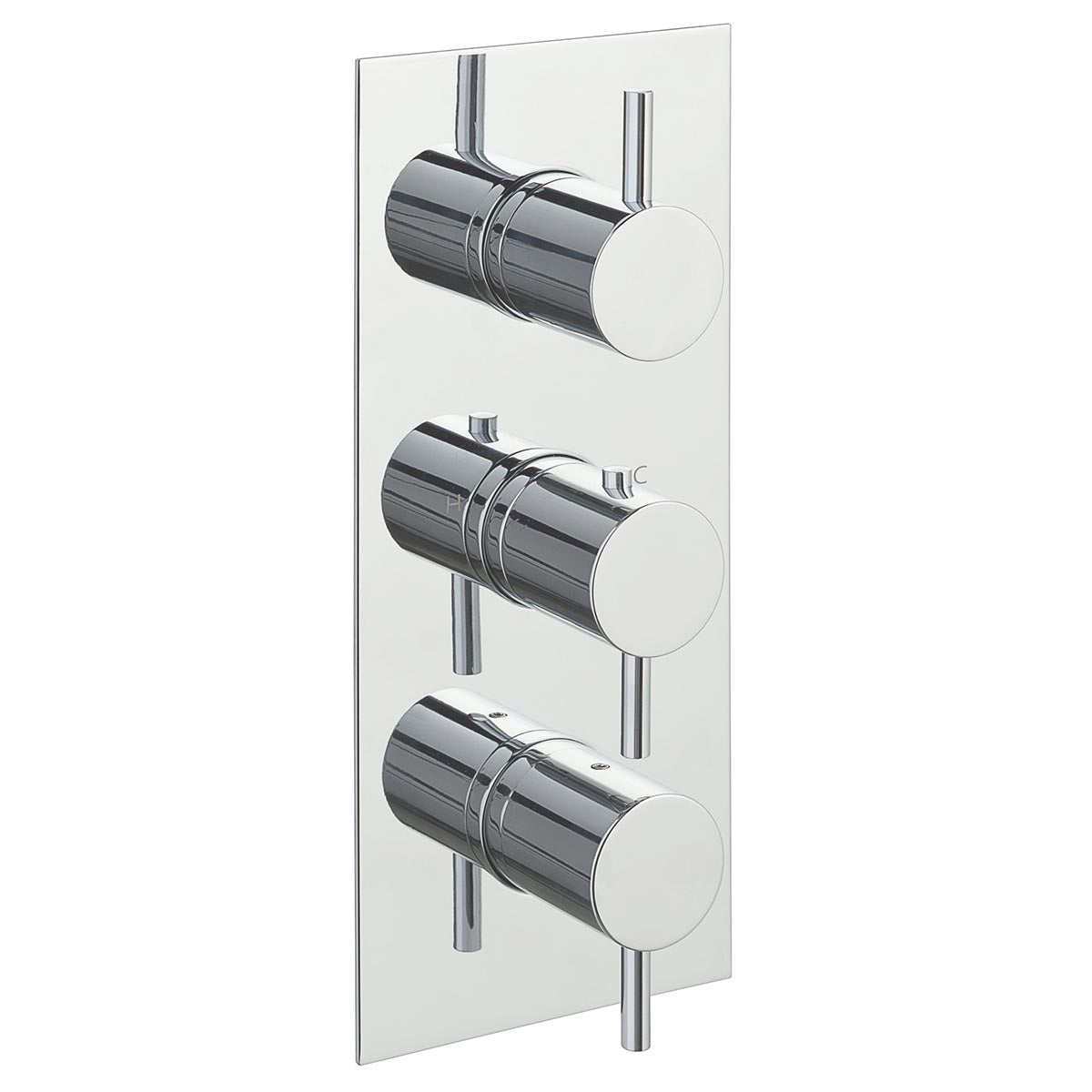

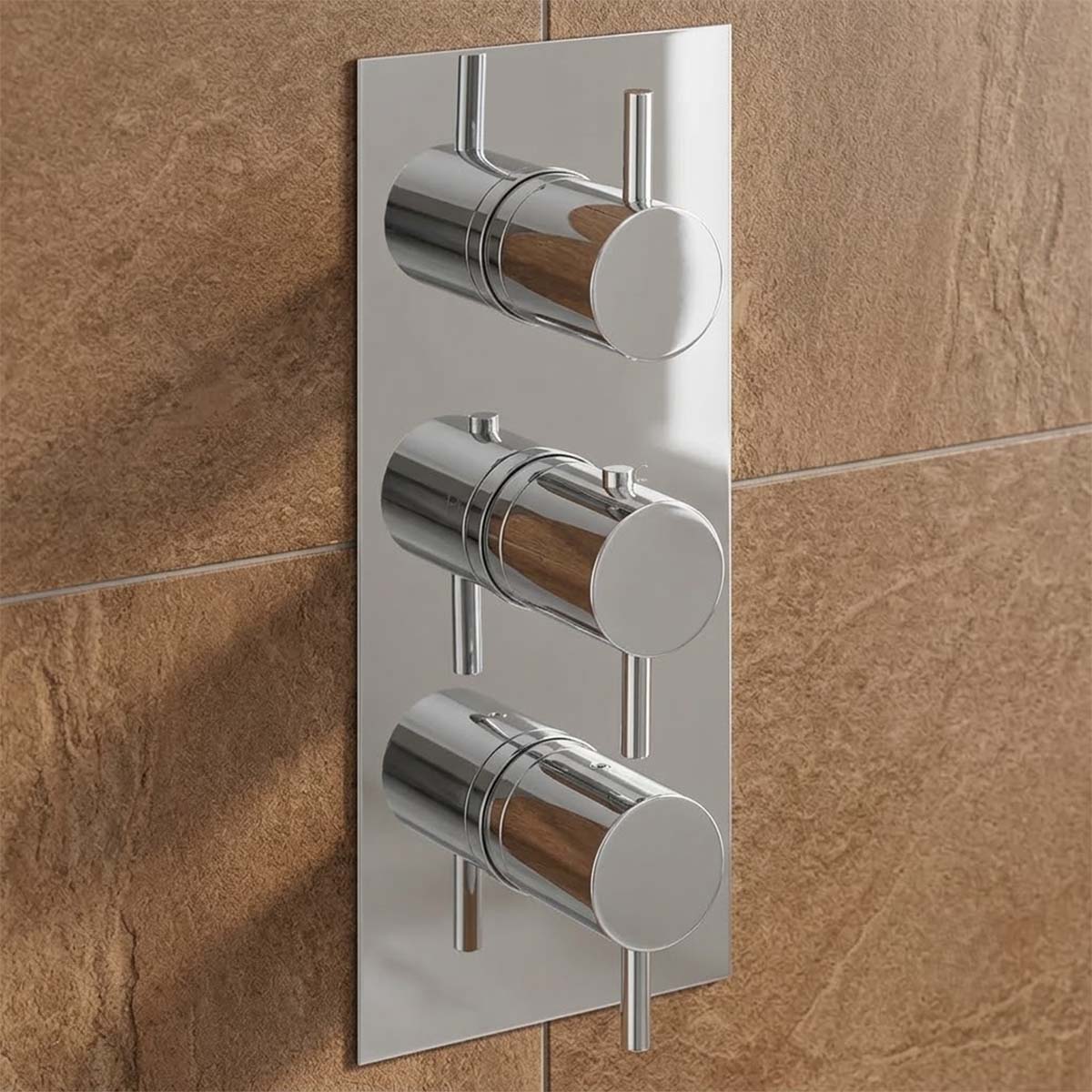

Create a polished and highly functional showering area with this elegant 3 outlets vertical shower valve, designed to bring multiple water functions together within one streamlined fitting. Made from solid brass and finished in luminous chrome, it combines excellent durability with a crisp, reflective appearance. Three rounded controls are arranged vertically on a single backplate measuring 275mm in height and 120mm in width, giving the installation an orderly profile that complements contemporary bathroom interiors.
The three controls each perform a distinct role, making the shower system simple to understand and comfortable to operate. The upper lever manages the supply to two outlets, allowing water to be directed between fittings such as a rainfall shower and riser rail, both available separately. The central thermostatic dial adjusts the balance between hot and cold water as it is moved left or right, helping you achieve your preferred temperature. A separate lower control operates the third outlet, such as a bath spout, providing independent flow when required. This makes the 3 outlet shower valve set a versatile choice for combining showering and bathing functions within one coordinated arrangement.
Pair this sophisticated valve with a chrome rainfall shower, riser rail, handset, bath spout and coordinating wall or ceiling arm to create a complete and beautifully unified setup. Matching chrome taps, wastes and accessories can continue the bright metallic theme throughout the room.
Features & Benefits:
- Solid brass construction
- Polished chrome finish
- Vertical three-control layout
- Round control styling
- Concealed valve mechanisms
- Upper lever for directing water between two primary outlets
- Central thermostatic dial for balancing hot and cold water
- Lower control for independently operating the third outlet
- Three-outlet configuration
- Ceramic disc technology for smooth and drip-resistant operation
- TMV2 approved
- Suitable for medium-pressure water systems
- Minimum operating pressure: 0.5 bar
- G 3/4" threaded plumbing connections

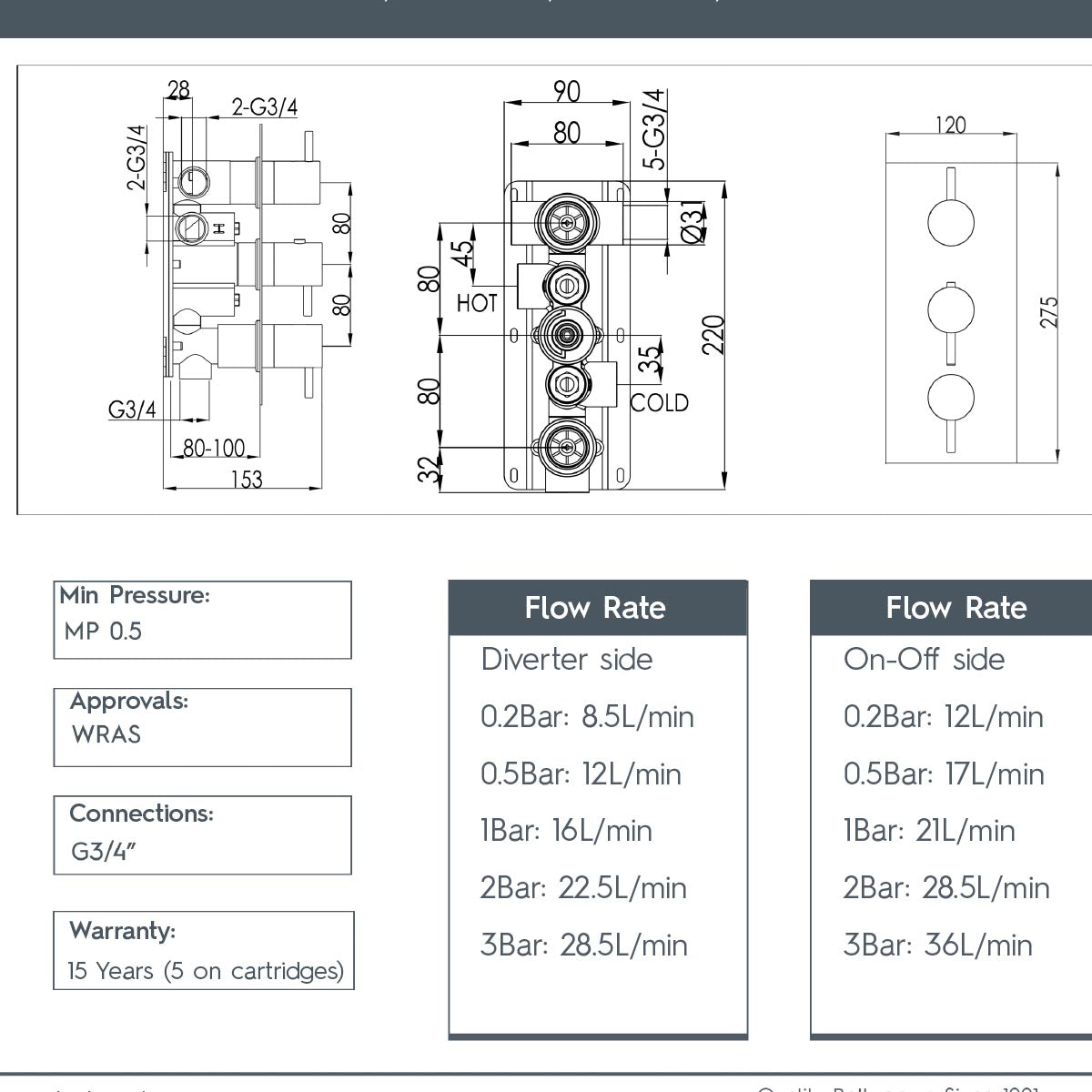

- Backplate height: 275mm
- Backplate width: 120mm
- Valve length: 153mm
- Gap between controls: 80mm
- 15-year manufacturer’s guarantee
- Five-year guarantee on cartridges
Flow Rate (Diverter side):
- 0.2Bar: 8.5L/min
- 0.5Bar: 12L/min
- 1Bar: 16L/min
- 2Bar: 22.5L/min
- 3Bar: 28.5L/min
Flow Rate (On/Off side):
- 0.2Bar: 12L/min
- 0.5Bar: 17L/min
- 1Bar: 21L/min
- 2Bar: 28.5L/min
- 3Bar: 36L/min
