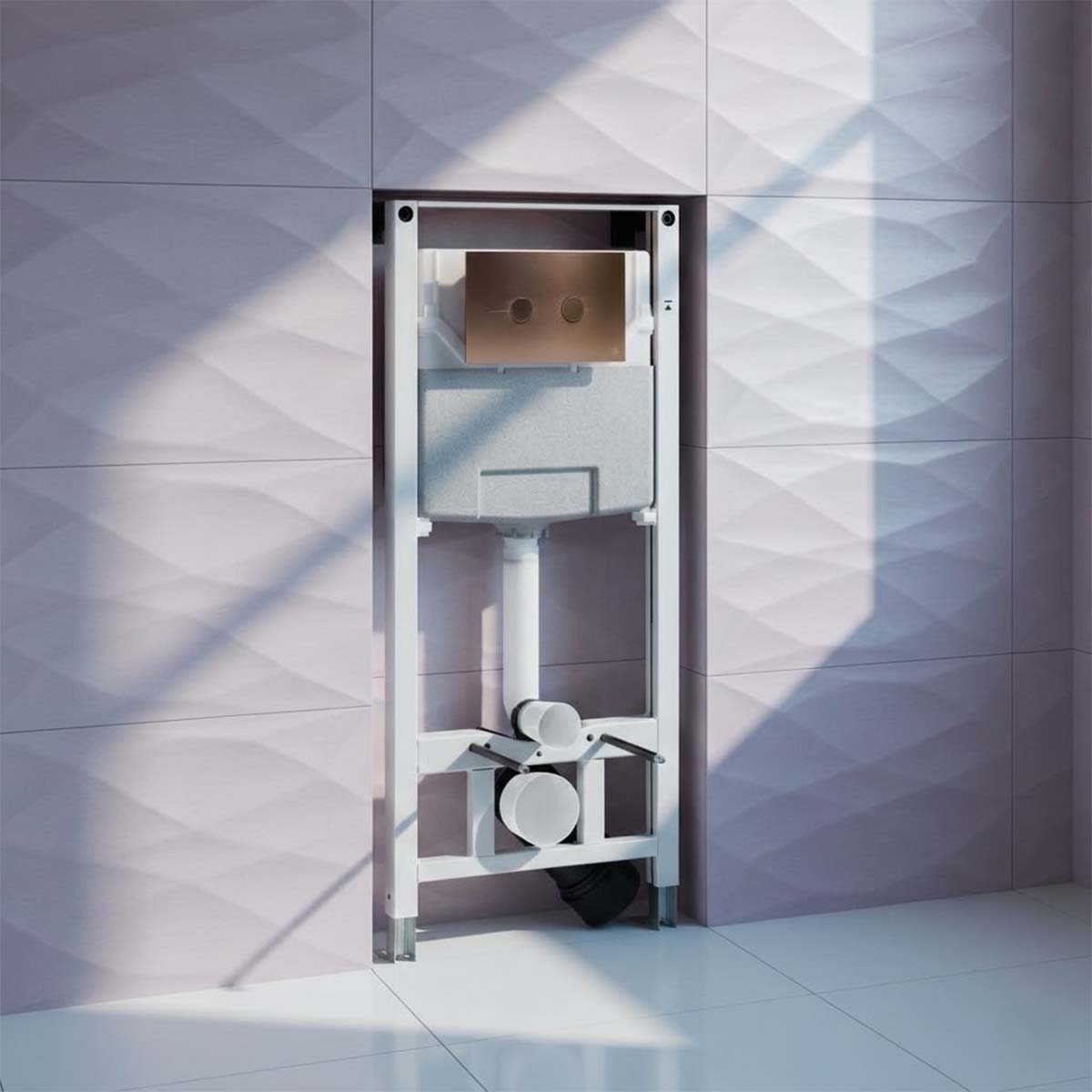

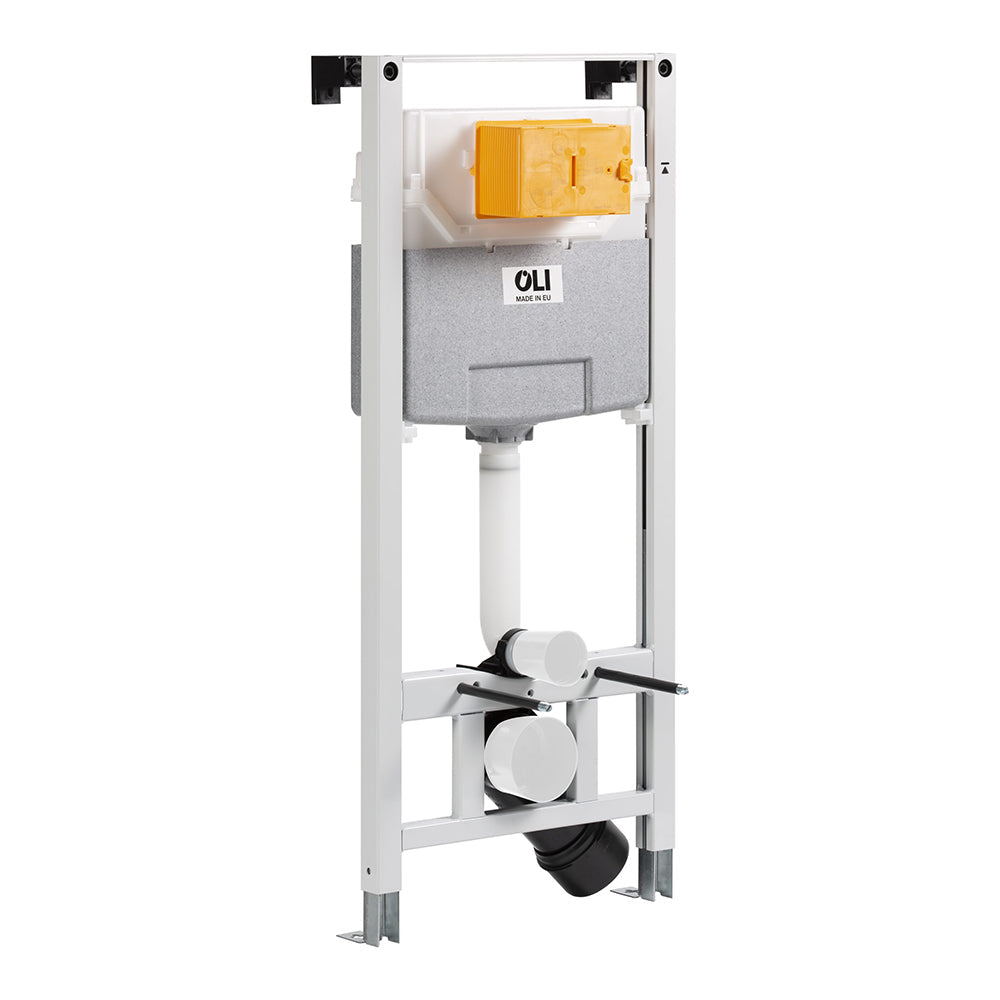

A smart, space-saving solution for contemporary bathrooms, the wall hung WC frame with bronze flush plate combines robust functionality with refined aesthetics. Designed to support wall-hung toilets, the frame includes a durable concealed toilet cistern frame, engineered for long-term performance and ease of installation.
Crafted from high-quality ABS, the toilet cistern features a front flush installation and a 3/6 litre dual flush system that promotes efficient water use. Its internal structure is designed to reduce flushing sound, offering quieter operation that suits residential and commercial settings alike. The unit measures 1150mm in height and 500mm in width, with an adjustable depth of 126–170mm.
Installation is straightforward thanks to the easy fastening system, and the frame comes complete with brackets and a soil pipe for quick and secure setup. Suitable for a variety of wall constructions, it offers flexibility across a wide range of bathroom designs.

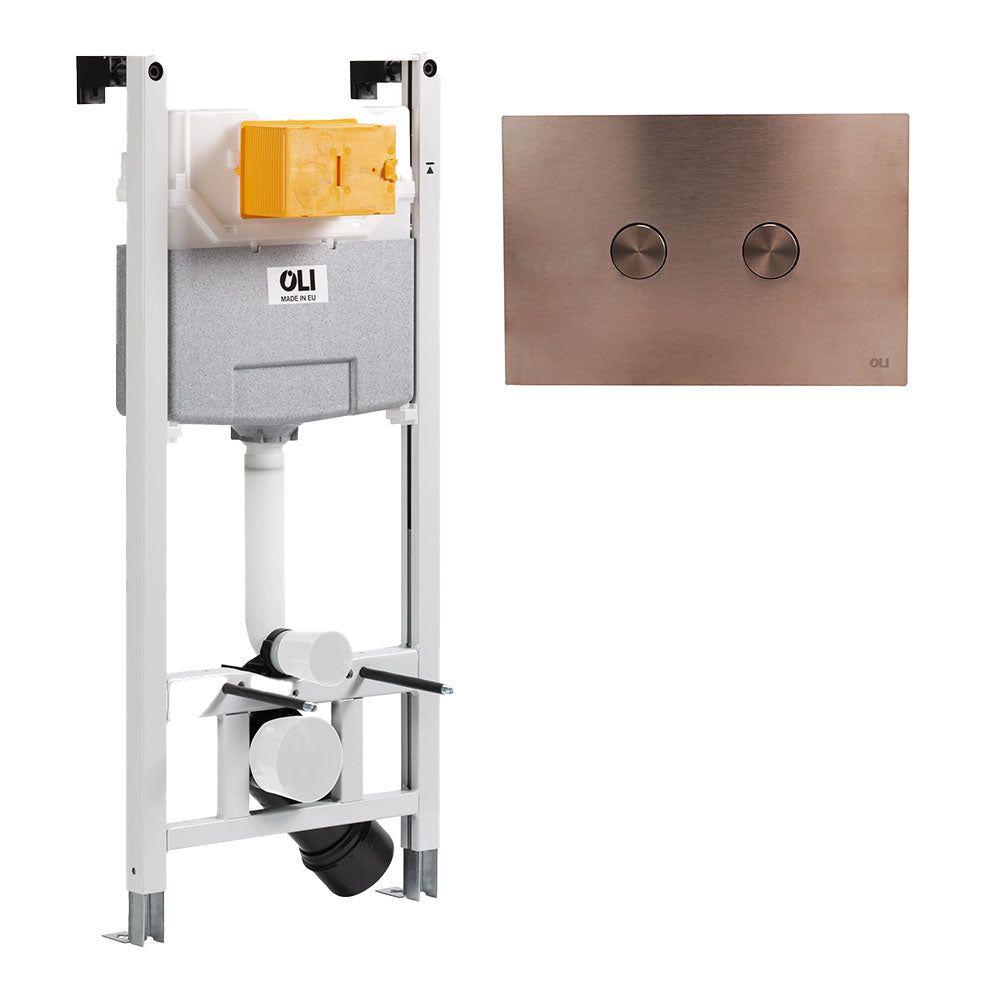

The set is completed by a brushed bronze toilet flush button plate, constructed from solid brass and finished with a durable PVD coating. Featuring a dual flush mechanism, the plate offers water-saving functionality while enhancing the overall aesthetic.
Key Features:
- At 1200mm, this reduced height frame is perfect for installations under windows or in limited spaces.
- Equipped with the Fast-Fit system, this frame offers quick, secure attachment to load-bearing walls and ensures fast, precise levelling.
- Tested with a hefty 400kg load, ensuring longevity and reliability.
- Features a high-performance, adjustable dual flush system to help reduce water usage, with settings of 6/3 litres, adjustable to 4/2 litres or 7/3 litres, aiding in the conservation of water and reduction of bills.
- Designed to function quietly, maintaining a serene bathroom environment.
- Suitable for solid wall or drywall setups, with adjustable legs ranging from 0 to 200mm, altering the overall height between 820 and 1020mm.
- Features a corrosion-resistant, 1.5mm thick painted tubular steel frame for enduring support.
- Meets EN 14055 standards,
- It comes with a 5-year manufacturer's guarantee for added assurance.

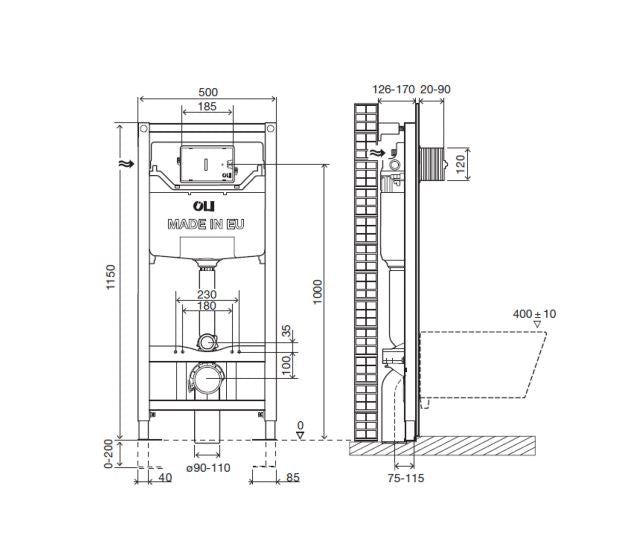

Dimensions:
- Adjustable Height - 1150-1350mm
- Width - 500mm
- Depth - 126-170mm
