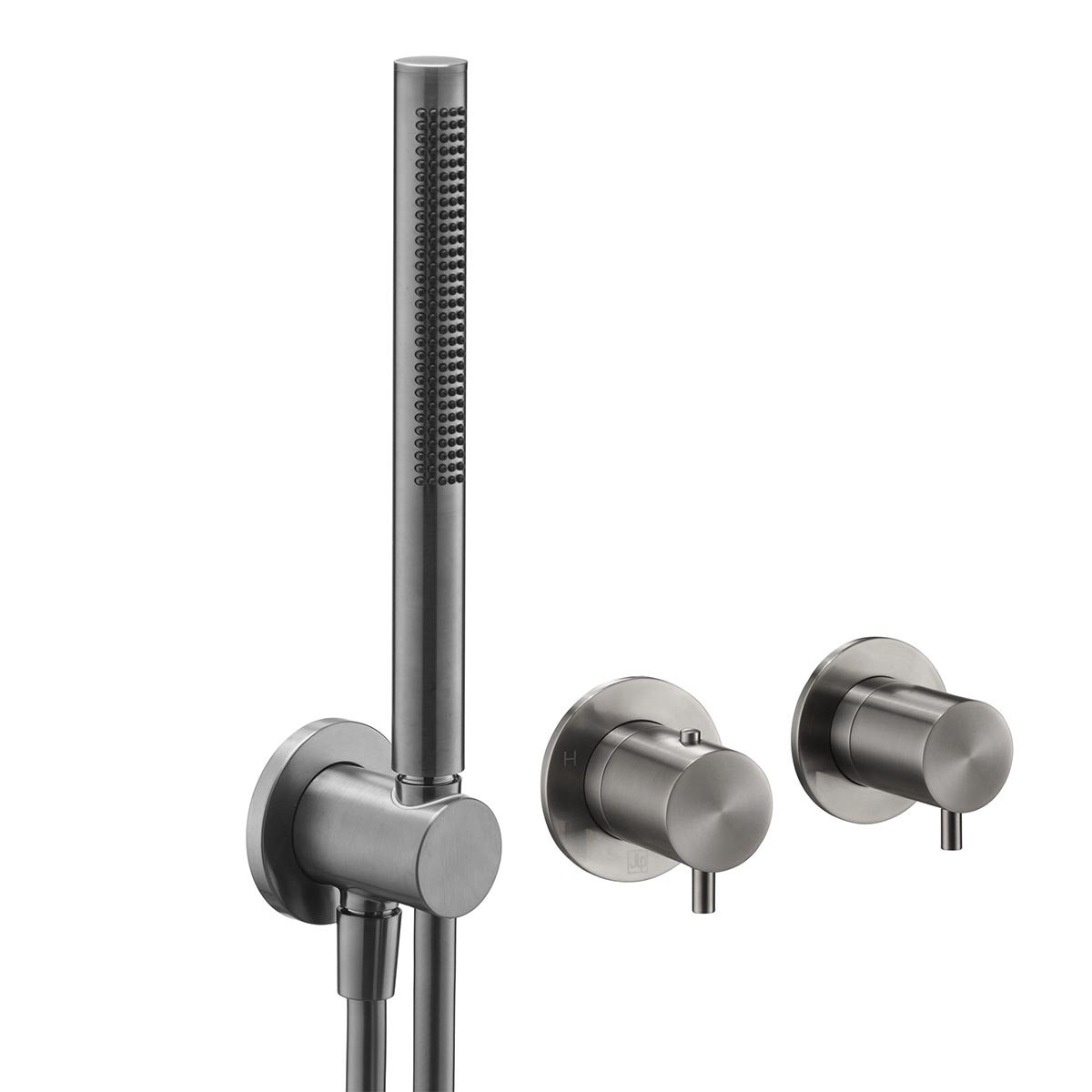

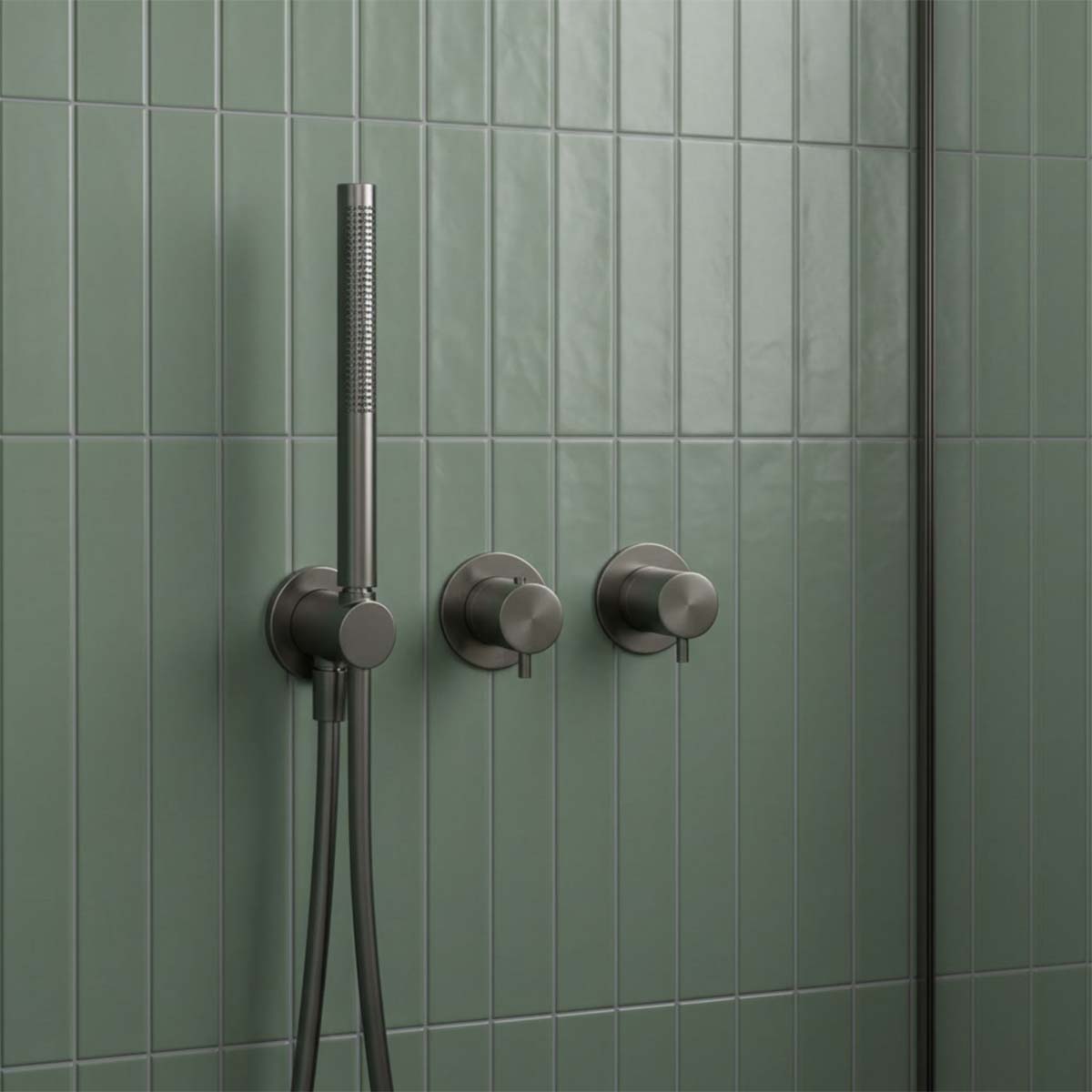

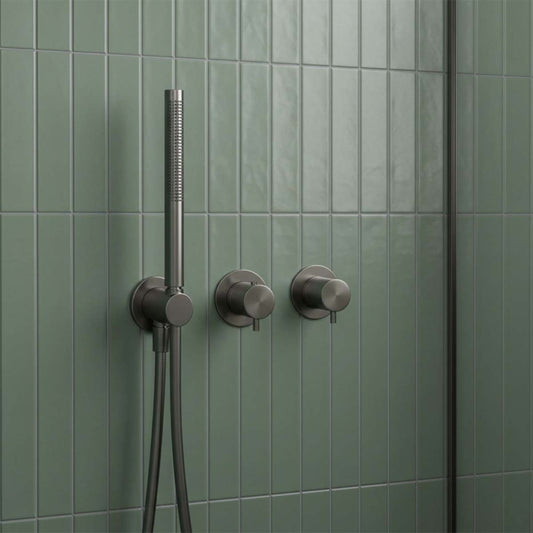

Designed around a practical three-part layout, this 2 outlet modern shower mixer valve with handset places every function within easy reach. The handset sits neatly on the left within its integrated holder and is supplied with a flexible hose for comfortable rinsing. Concealed behind its 72mm circular backplate is a centrally positioned thermostatic dial that blends the hot and cold water supplies, allowing you to select a comfortable temperature with smooth, controlled movement. On the right, a handle increases or reduces the flow to the handset and the second outlet, such as an overhead shower, which is available separately. This clearly organised arrangement makes the two way concealed shower valve simple to understand and effortless to operate throughout daily use.
A deep brushed black finish gives the set a distinctive, softly textured character that complements concrete-effect surfaces, pale stone, wood accents and monochrome interiors. Beneath this dramatic exterior, the solid brass construction provides the durability expected from a dependable brass shower mixer valve. All three elements are fitted horizontally through separate wall openings, producing a spacious and well-proportioned installation while concealing the internal plumbing behind the surface.
Engineered for compatible medium-pressure systems, the concealed thermostatic shower valve operates from a minimum pressure of 0.5 bar and features secure G 3/4-inch threaded connections. Ceramic disc technology promotes precise, drip-resistant performance, while WRAS approval provides additional reassurance. The controls are spaced 150mm apart, and each valve measures 42mm in width and 153mm in length. Complete the look with a coordinating brushed black rainfall shower, wall-mounted arm, taps, wastes and accessories. Supported by a 15-year manufacturer’s guarantee and five-year cartridge cover, this sophisticated fitting brings assured performance and striking modern definition to the bathroom.
Features & Benefits:
- Solid brass construction
- Brushed black finish
- Concealed installation
- Horizontal three-hole arrangement
- Two-outlet configuration for combining a shower handset with a rainfall shower
- Handset positioned within an integrated holder for neat storage and convenient use
- Central thermostatic dial for smoothly blending hot and cold water
- Right-hand lever for increasing or reducing water flow to the two outlets
- Three individual 72mm circular backplates
- WRAS approved
- Suitable for compatible medium-pressure water systems
- Minimum operating pressure: 0.5 bar
- G 3/4" threaded plumbing connections
- Gap between controls: 150mm
- Circular backplate width: 72mm
- Valve width: 42mm
- Valve length: 153mm
- 15-year manufacturer’s guarantee
- Five-year guarantee on cartridges
Flow Rate - Bath (Mix Water):
- 0.5Bar: 9.8L/min
- 1Bar: 15.7L/min
- 2Bar: 22.8L/min
- 3Bar: 28L/min
Flow Rate - Shower (Mix Water):
- 0.5Bar: 5.4L/min
- 1Bar: 7.9L/min
- 2Bar: 12L/min
- 3Bar: 15.5L/min
