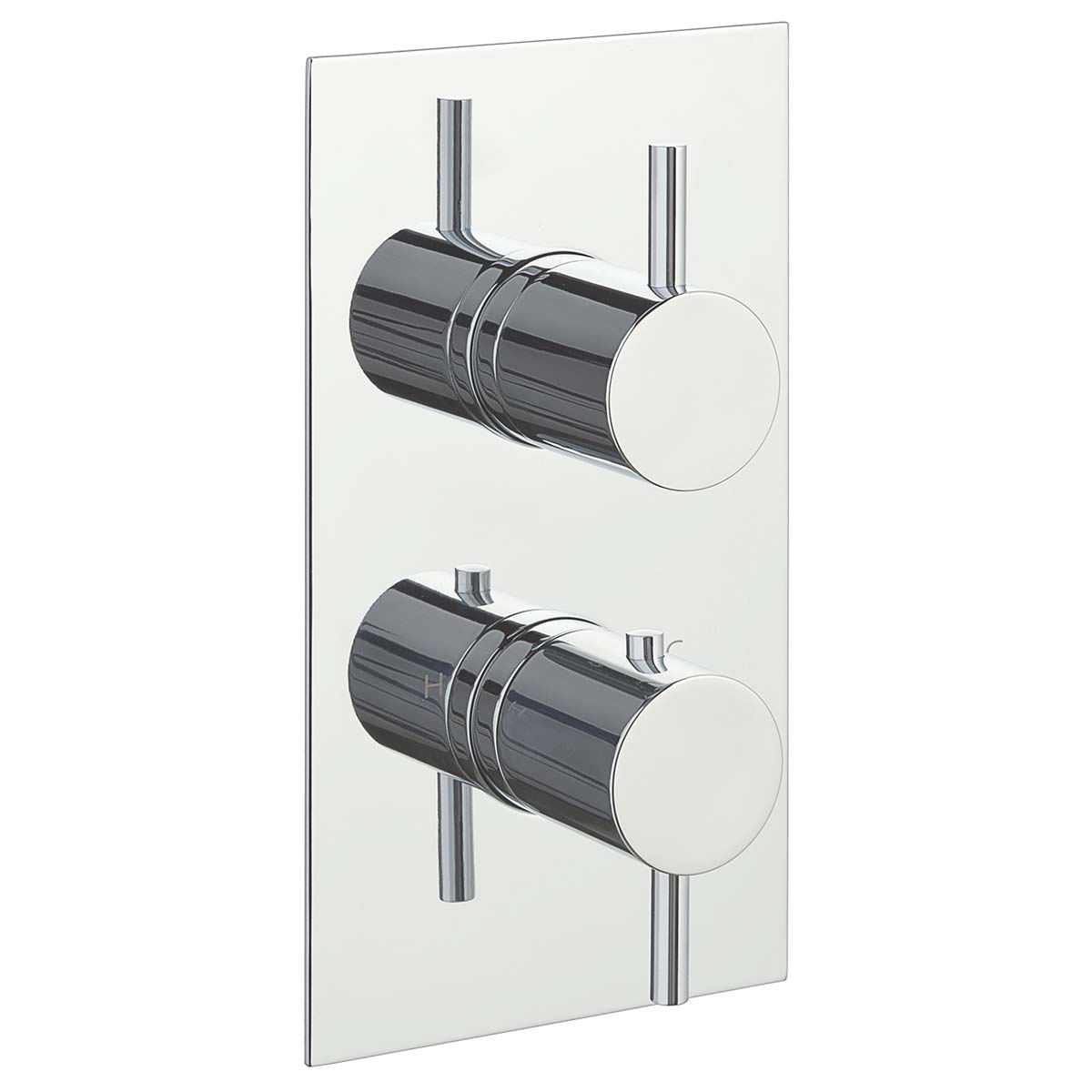

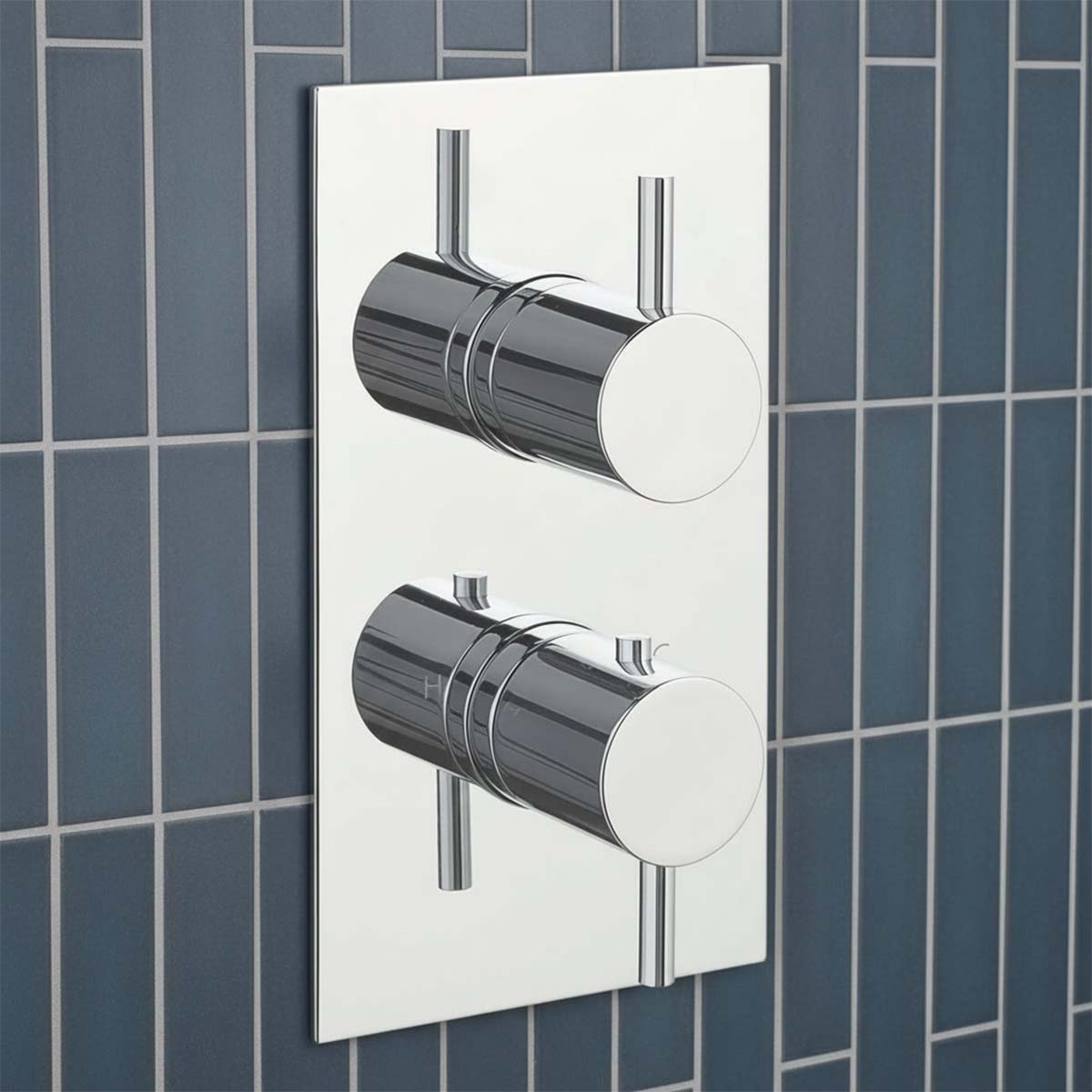

Bring polished control and contemporary refinement to your shower area with this beautifully engineered concealed shower mixer valve. Made from solid brass and finished in gleaming chrome, it combines robust performance with a crisp, light-reflective appearance. The two rounded controls are neatly arranged on a single backplate measuring 215mm in height and 120mm in width, creating a compact, composed installation that sits elegantly against modern tiles and stone surfaces.
Designed with the streamlined appeal of a one way concealed shower valve, the operating mechanisms remain hidden behind the wall so that only the sleek controls and backplate are visible. The upper lever manages the water supply to one outlet, such as a rainfall shower or a shower handset. The lower thermostatic dial adjusts the balance between hot and cold water as the lever handle is moved to the left or right, helping you reach a comfortable temperature without complicated controls. Compatible shower outlets are available separately.
This refined wall mounted shower valve operates from a minimum pressure of 0.5 bar and connects through G 3/4-inch threaded fittings. Each valve measures 153mm in length, with an 80mm gap between the two controls for a neatly proportioned layout. Ceramic disc technology provides fluid, precise movement while helping to prevent unwanted drips, and WRAS approval offers additional reassurance for everyday use.
Complete the chrome finish with a coordinating rainfall shower head, wall or ceiling arm, handset, flexible hose and outlet elbow to create a bright and cohesive showering arrangement. Supported by a 15-year manufacturer’s guarantee and five-year cartridge cover, this sophisticated valve brings intuitive temperature management, coordinated water control and enduring elegance to the bathroom.
Features & Benefits:
- Solid brass construction
- Polished chrome finish
- Round control design
- Wall-mounted installation
- Two controls mounted on a single backplate
- Concealed valve mechanisms for an uncluttered wall appearance
- Upper lever for directing the water supply between one shower outlet
- Lower thermostatic dial for smooth hot and cold water adjustment
- Ceramic disc technology for smooth and drip-resistant operation
- WRAS approved for added quality and safety reassurance
- Suitable for medium-pressure water systems
- Minimum operating pressure: 0.5 bar
- G 3/4" threaded plumbing connections

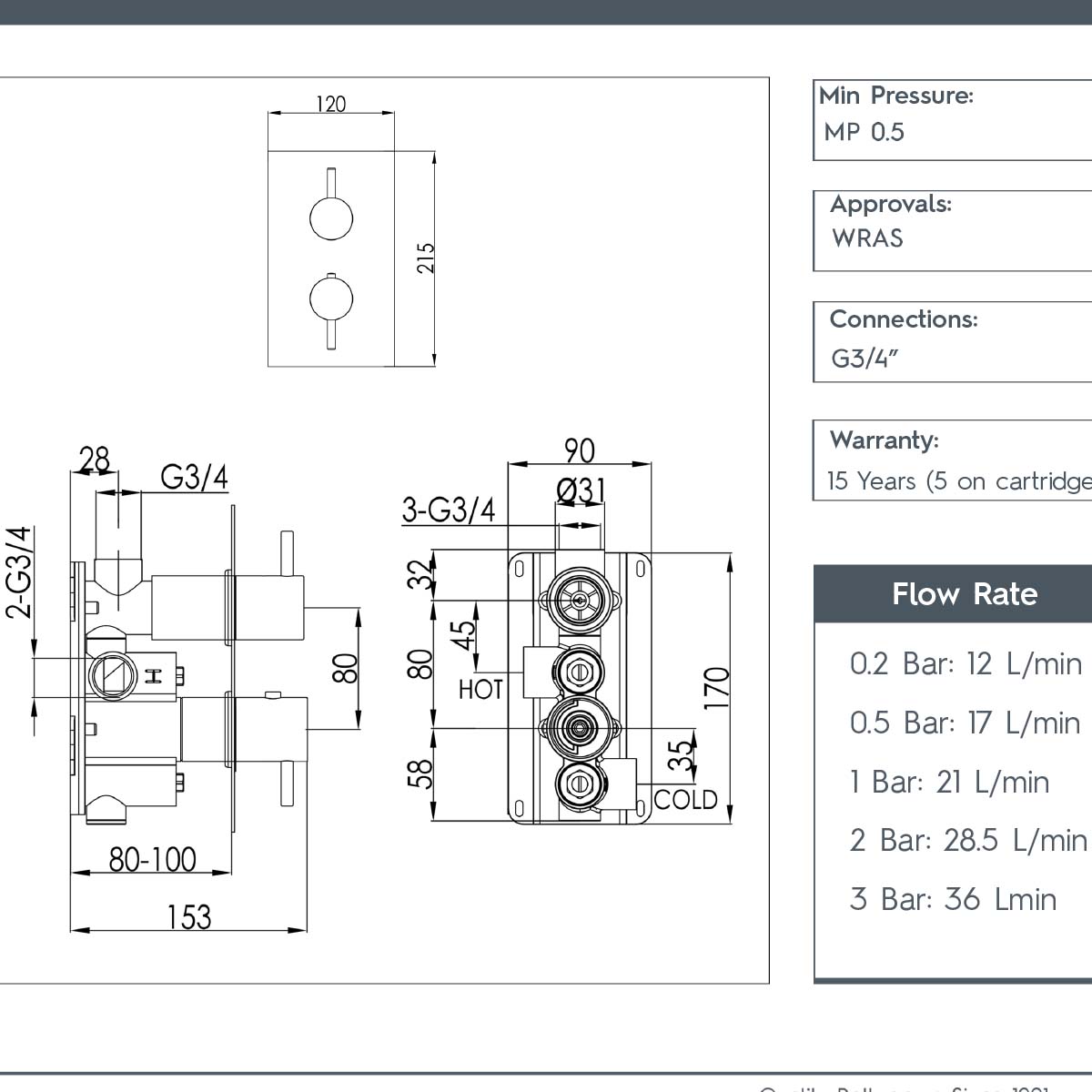

- Backplate height: 215mm
- Backplate width: 120mm
- Valve length: 153mm
- Gap between controls: 80mm
- 15-year manufacturer’s guarantee
- Five-year guarantee on cartridges
Flow Rate:
- 0.2Bar: 12L/min
- 0.5Bar: 17L/min
- 1Bar: 21L/min
- 2Bar: 28.5L/min
- 3Bar: 36Lmin
