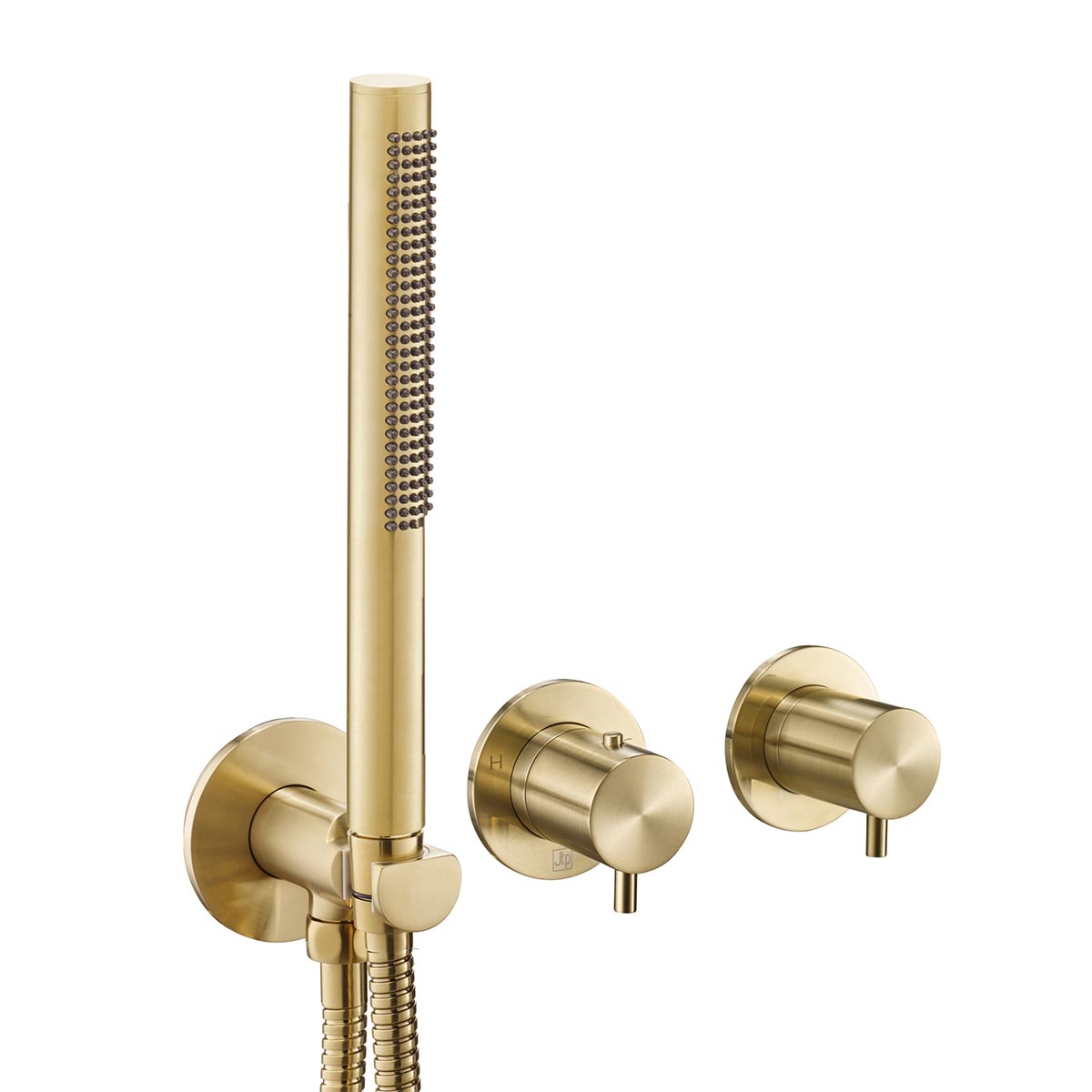

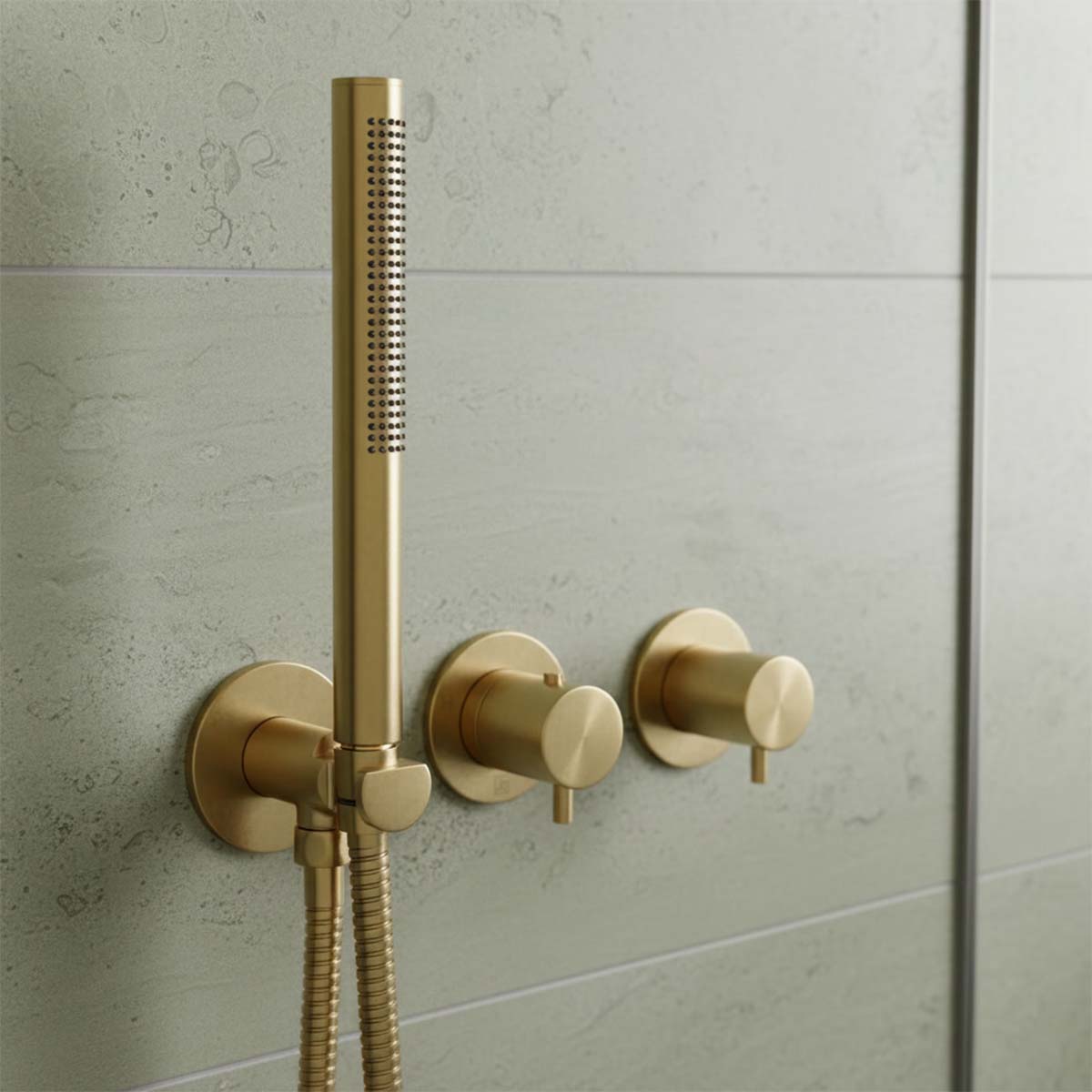

Warm metallic tones and carefully arranged controls give this brushed brass concealed shower valve with a handset an elegant, contemporary presence. Crafted from solid brass for lasting strength, the set is installed horizontally across three separate wall openings, creating a balanced composition while keeping the plumbing mechanisms discreetly hidden. Its softly brushed finish adds depth without excessive shine, pairing beautifully with marble, stone-effect tiles and neutral bathroom schemes.
The handset occupies the left-hand position, resting neatly within its integrated holder and accompanied by a flexible hose for comfortable rinsing. At the centre, the thermostatic dial blends the hot and cold supplies, making it easy to establish a comfortable water temperature. The control on the right operates as a lever shower mixer valve, increasing or reducing the flow to the second outlet, such as a shower head, which is available separately.
Together, the clearly assigned functions make this 2 outlet concealed shower valve intuitive to use, while ceramic disc technology provides smooth adjustment and dependable drip-resistant performance. Suitable for compatible medium-pressure systems, the valve operates from a minimum pressure of 0.5 bar and connects through secure G 3/4-inch threaded fittings. The elements are spaced 150mm apart, with each valve measuring 42mm in width and 153mm in length, and their working concealed behind separated 72mm circular plates each.
WRAS approval offers additional reassurance, while a 15-year manufacturer’s guarantee and five-year cartridge cover support its enduring quality. Pair it with a matching brushed brass rainfall shower, wall arm, wastes and coordinated accessories to create a serene, cohesive bathroom setting.
Features & Benefits:
- Solid brass construction
- Brushed brass finish
- Modern rounded design
- Concealed installation
- Horizontal three-hole arrangement
- Two-outlet configuration for combining a shower handset with a rainfall shower
- Handset positioned within an integrated holder for neat storage and convenient use
- Central thermostatic dial for smoothly balancing hot and cold water
- Right-hand lever for increasing or decreasing water flow to the second outlet
- Three individual 72mm circular backplates for a polished and coordinated finish
- Ceramic disc technology for smooth and drip-resistant operation
- WRAS approved for added quality and safety reassurance
- Suitable for medium-pressure water systems
- Minimum operating pressure: 0.5 bar
- G 3/4" threaded plumbing connections

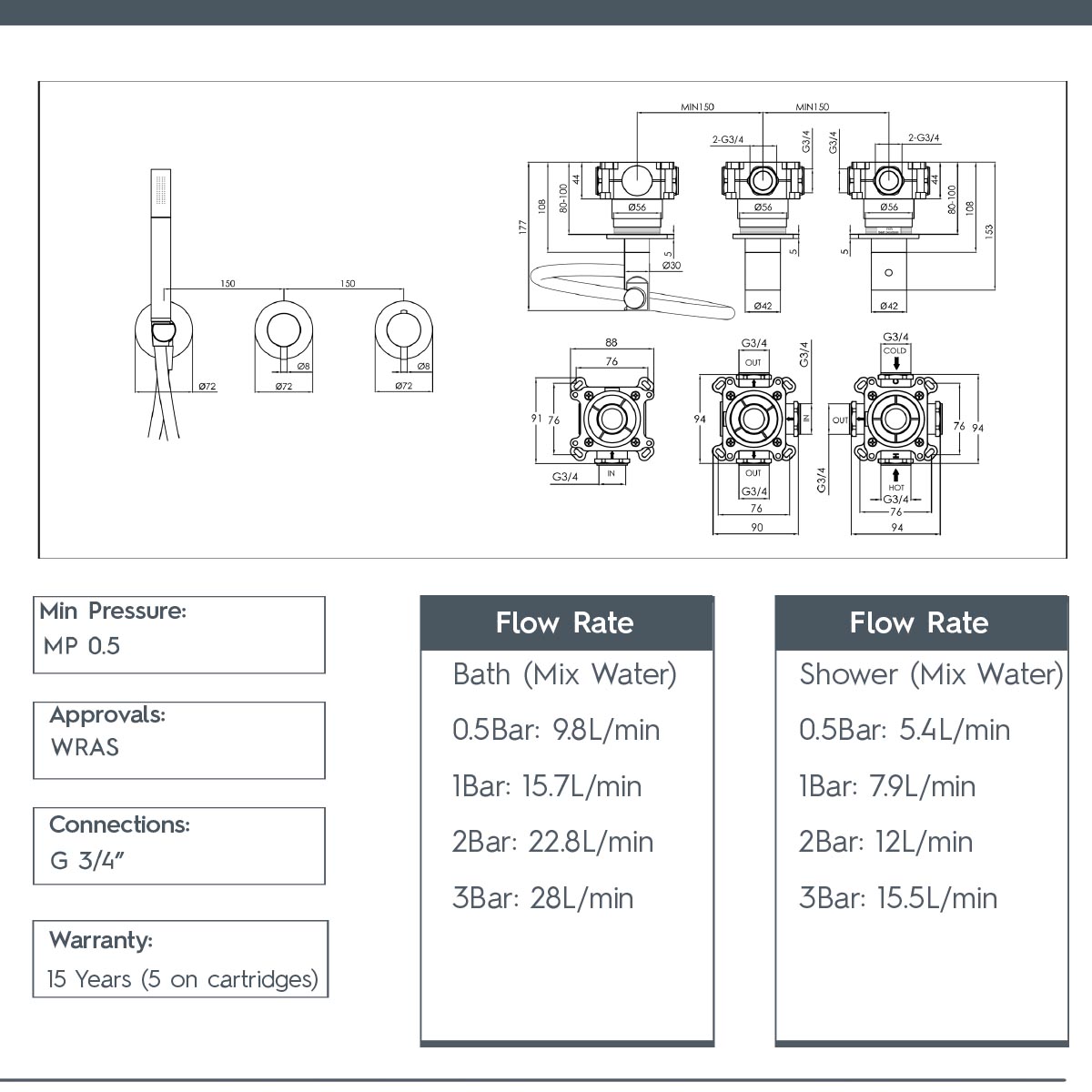

- Gap between controls: 150mm
- Circular backplate width: 72mm
- Valve width: 42mm
- Valve length: 153mm
- 15-year manufacturer’s guarantee
- Five-year guarantee on cartridges
Flow Rate - Bath (Mix Water):
- 0.5Bar: 9.8L/min
- 1Bar: 15.7L/min
- 2Bar: 22.8L/min
- 3Bar: 28L/min
Flow Rate - Shower (Mix Water):
- 0.5Bar: 5.4L/min
- 1Bar: 7.9L/min
- 2Bar: 12L/min
- 3Bar: 15.5L/min
